Curtain Wall

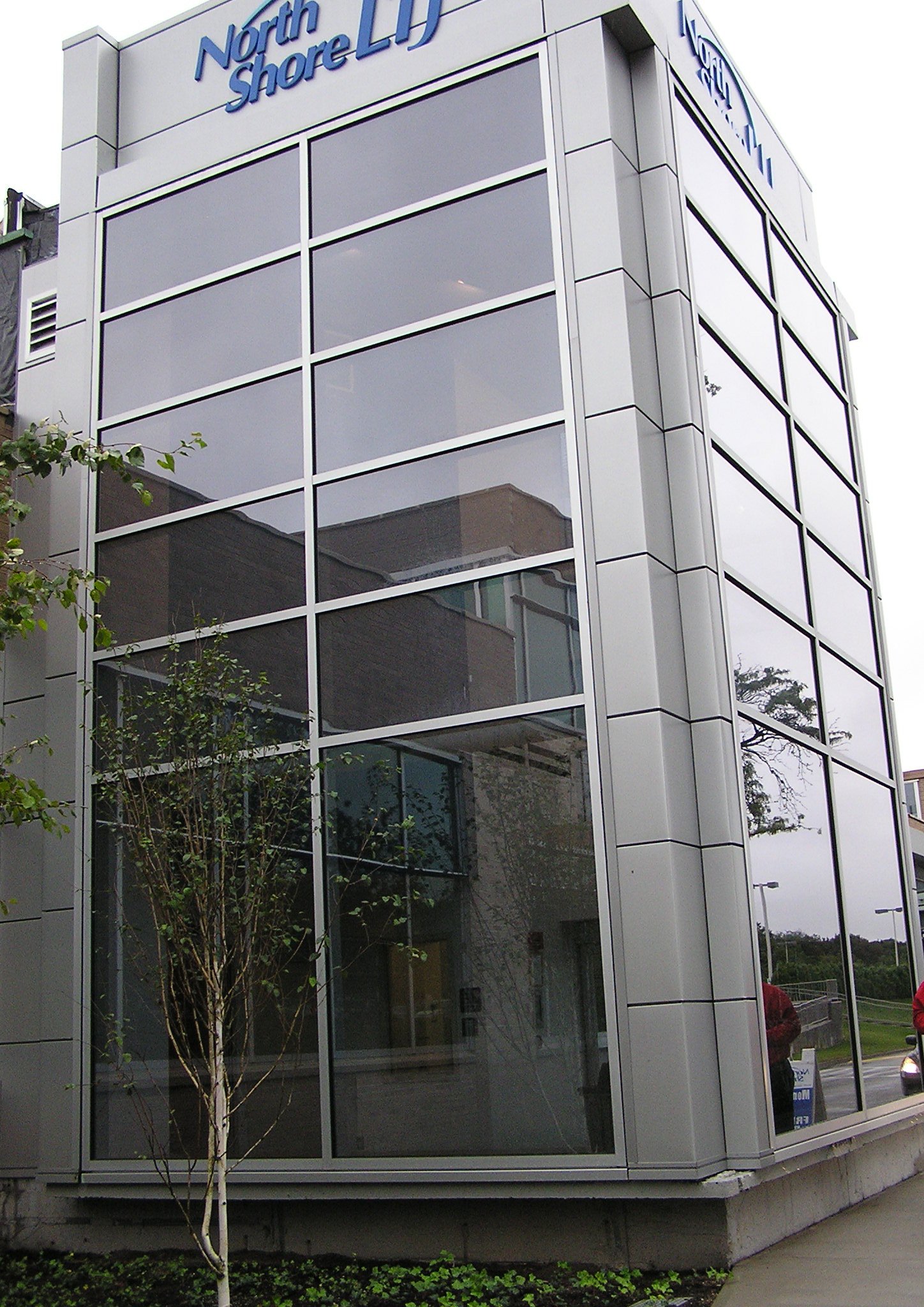

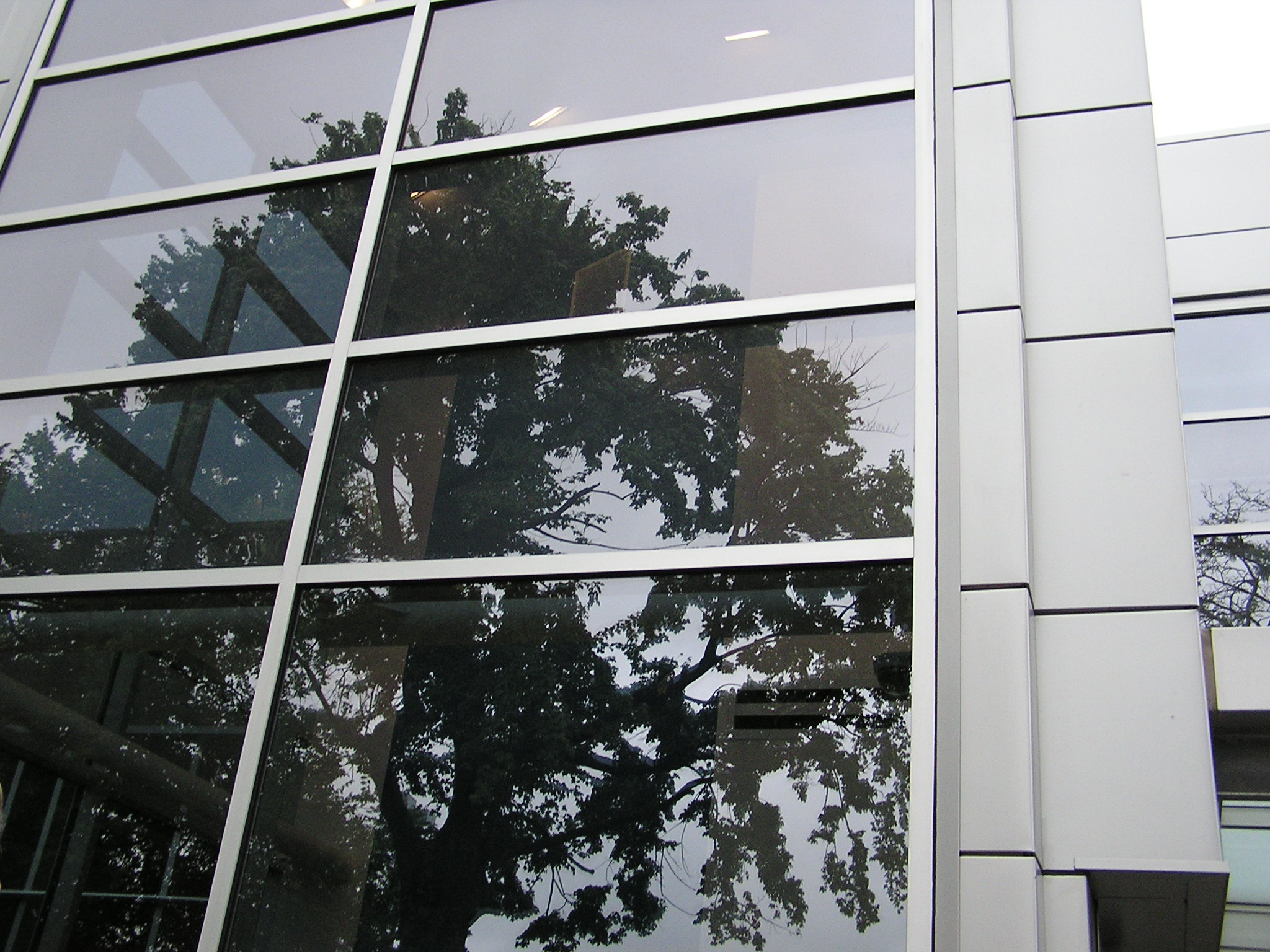

     Curtain wall is an outer covering of a building in which the outer walls are non-structural. It keeps the weather out and the occupants in. As the curtain wall is non-structural entity, it can be made of a lightweight material reducing construction costs. When glass is used as the curtain wall, a great advantage is that natural light can penetrate deeper within the building. The curtain wall façade does not carry any dead load weight from the building other than its own dead load weight. The wall transfers horizontal wind loads that are incident upon it to the main building structure through connections at floors or columns of the building.

     A curtain wall is designed to resist air and water infiltration, sway induced by wind and seismic forces acting on the building, and its own dead load weight forces. Curtain walls differ from store-front systems in that they are designed to span multiple floors, and take into consideration design requirements such as thermal expansion and contraction. Curtain Wall Systems are typically designed with extruded aluminum members, although the first curtain walls were made of steel. The aluminum frame is typically infilled with glass, which provides an architecturally pleasing building, as well as benefits such as day lighting. Other common infills include: stone veneer, metal panels, louvers, and operable windows or vents.
